Minrray, Fixed Integrated Zoom camera. Outputs SDI, HDMI and LAN 20X



* Ex GST. Check with us for the latest pricing

Data Sheet | Related Products Minrray Products

Full HD, Large Zoom Range, Multiple Video Interfaces.

The UV1201 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic colour rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

Key Features

  • Superb High-definition Image UV1201 employs 1/2.8 inch high-quality CMOS sensor. Resolution is up to 1920x1080 with a frame rate up to 60fps.
  • Leading Auto Focus Technology Leading autofocus algorithm makes the lens a fast, accurate and stable auto-focusing.
  • Low Noise and High SNR Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

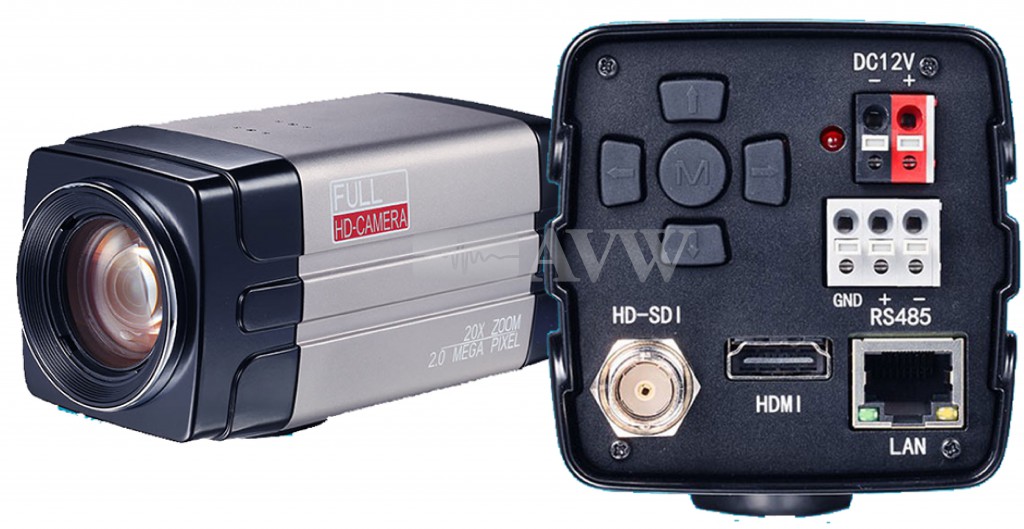

  •  Multi-Format Video Outputs Multiple interfaces include HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
  • Multiple Video Compression Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
  •  Multiple Network Protocol Support ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
  • Support Multiple Control Protocol. Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized.Support Visca protocol control through IP port.
  • Wide Application Tele-education,Lecture Capture,Webcasting,Videoconferencing,Tele-training,Tele-medicine,Interrogation and Emergency command systems.
