Minrray UV540 Full HD PTZ Conference Camera



* Ex GST. Check with us for the latest pricing

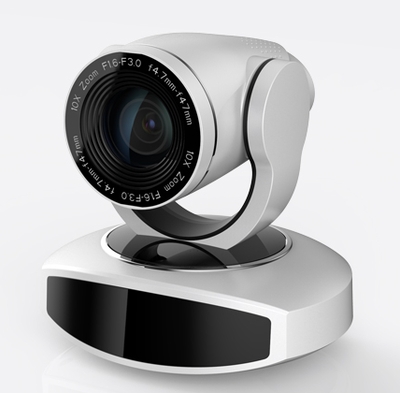

Minrray UV540 - Full HD PTZ Conference Camera

Full HD, Wide View Angle, Multiple Zoom Lens, Multiple Video Interfaces and Multiple Protocols.

The Minrray UV540 series camera provides a high performance package in a light-weight cost effective platform.

Key Features:
-1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
-5x / 10x Optical zoom lens for options. 5x zoom lens is with 83.7 ° wide view angle without distortion.
-Leading Auto Focus Technology
-Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
-Low Noise and High SNR
-Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
-Multiple video output interfaces: Support HDMI, SDI, USB and LAN / IP Streaming
-Multiple Video compression: Support H.265/H.264 video compression
-Support 16000,32000,44100,48000hz sampling frequency and AAC,MP3,G.711A audio coding.
-Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
-RS232, RS485; RS232 support daisy chain, convenient for installation on projects.
-Multiple Control Protocols: Support VISCA, Pelco-D, Pelco-P and support auto-recognize protocol.
-Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode
-Wide-range, Quiet and Quick Pan/Tilt Mechanism
-Support up to 255 presets (10 presets by remoter )

Minrray UV540 Deployment Applications:
Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

Check out the UV540 Datasheet here | FOV Calculator
