Amino H150, Streaming / IP STB with POE



* Ex GST. Check with us for the latest pricing

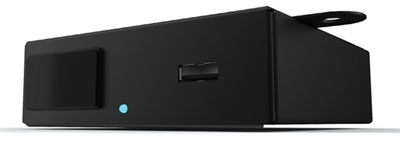

Amino H150 - IPTV Set-top-box with POE.

The H150 is a powerful high-definition device ideal for guest room and digital signage applications. Whether you need to interact with hotel guests with a movie on demand service, engage visitors with action replays at a sports stadium, or capture shoppers with an interactive ad, our comprehensive range of enterprise solutions will enable you to connect with your audience. Our field-proven solutions are widely deployed across a variety of use cases, including hotels, sports stadia, shopping malls, corporate offices and aircrafts.

We can help you maximize the impact of your message or campaign and reach your audience more effectively.

Consumers are demanding a more integrated and seamless user experience across multiple screens. Our award-winning IPTV and innovative hybrid OTT portfolio can help you meet these changing demands today, while enabling you to build a foundation to deliver emerging services in the future.

Our TV Devices and Software solutions enable you to provide the best of linear broadcast television and IP-based services.

Deliver any content over any network to any home.

System and memory
• CPU Dual Core SoC (2000 DMIPS)
• Memory (RAM) 1GB DDR3
• Memory (Flash) 256MB
• Graphics 3D graphics with Open GL ES2.0

• Operating System Linux
• Browser Opera SDK 3.6
• Middleware SDK or JMACX interfaces
• Security Verimatrix, SecureMedia, Playready

• Ethernet 10/100 BaseT (RJ-45)
• USB 2 x USB 2.0
• HDMI 1.4a with CEC
• RS-232 with TVI
• LEDs 3.5mm A/V jack
• Remote 36kHz IR receiver

• Codecs MPEG-2, MPEG-4 pt.2 (Visual), MPEG-4 pt.10 (AVC/H.264), WMV (VC1)
• Resolution Up to 1080p60
• Picture in Picture Up to 1080i60

• Codecs MPEG (Layer II), MP3, Dolby Digital (AC3), Dolby Digital Plus, AAC & AAC-HE, WMA

• Mains Power Supply 5V/3A
• Power Over Ethernet (IEEE 802.3af – 2003)
• Power Consumption <12W

• Size 102mm x 97mm x 44mm
• Weight 400g
• Operating Temp 0 °C to 40 °C
• Humidity 5% to 95% (non-condensing)

Alternative model Amino H140

Product Datasheet
