Lilliput A5 Full HD Monitor

A5

$343.00

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Lilliput A5 - 5Inch FHD 4K HDMI camera assist monitor.

The Lilliput A5 is the first Lilliput monitor to feature 4K inputs at the 5" screen size. It's UHD 4K compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1080 LED panel. If you're a mobile shooter who has upgraded to the 4K workspace, the A5 offers control over your shooting workflow both in the field and in the studio.


Specification:
Audio
Speaker1x Speaker (c. 1W) 1x Earphone Slot
Display
Aspect Ratio16:9
Brightness400 cdm²
Contrast Ratio1000:1
Viewing Angle170° x 170° (H/V)
Environment
Operating Temperature-20°c to 50°c
Storage Temperature-30°c to 70°c
HDMI Video Input
HDMI Video Input1x HDMI 1.4 (Compatible with UHD 4K 3840 x 2160 @ 30Hz)
Power
Current600mA
Input VoltageDC 7-24V
Power Consumption≤ 12W
Monitor Specification
Screen Size (diagonal)5" IPS
Native Resolution1920 x 1080 (Compatible with UHD 4K 3840 x 2160)
HDMI Output
HDMI Video Output1x HDMI 1.4 (Compatible with UHD 4K 3840 x 2160 @ 30Hz)
Contents Of Box
Product1 x A5 Monitor
Connection Cables1 x HDMI A to C cable
Power Adaptor1 x DC 12V plug (available in UK, US and EU style)
Mounts and stands1 x Hot Shoe Mount
Additional accessories1 x Folding sun shade
Dimensions
Height (mm)80 mm
Width (mm)129.8 mm
Depth (mm)23.6mm
Weight (g)118g

4K UHD Input over HDMI 1.4

The A5 is the first Lilliput monitor to feature a 5" 4K input. Facilitated by an HDMI 1.4 input, the A5 is a solid choice for Ultra HD filmmakers and photographers alike.

5" HDMI Monitor with Widescreen Aspect Ratio

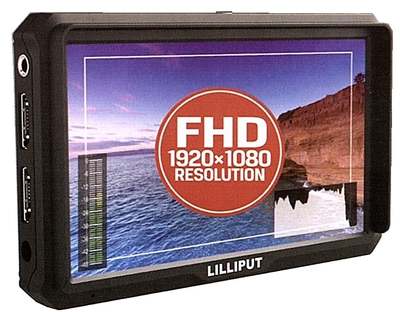

The Lilliput A5 features a full HD native panel, clocking in at 1920 x 1080. Much improved over its predecessors, this high resolution will give you the clearest view of your images without excessive downsampling or over-interpolation.



4K HDMI Loopthrough Output

The A5 features an HDMI loop through function - meaning you can connect the output of this monitor via HDMI to any other device with an HDMI input. A great solution for Video Village and extended screen viewing.



Featherweight Design for a Lighter Monitor

The A5 is the lightest monitor that Lilliput has to offer. Weighing in at just 118g, it's easily the lightest DSLR camera monitor we've ever produced - just 1/3rd the weight of a can of Coke - making it a low-burden addition to the toolkit of any mobile shooter.

7 inch 16:9 LCD

Advanced Monitor Functionality

As detailed at the top of this description page, the A5 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Pixel Zoom Function, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi-faceted monitoring solution.



**New** Dual Battery Plate System for F-970 / LP-E6 DSLR Batteries

New and exclusive to the A5 is a dual option battery mounting system which allows you to attach either a Sony NP-F970 battery or a Canon LP-E6 battery directly to the monitor unit for power. No longer do you need a separate battery plate - the A5 has the battery plate built into the Monitor.

7 inch 16:9 LCD

1/4" BSW Thread Holes, with Shoe Mount Adaptor

There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed
