10.1" Field Monitor with SDI Input

FA1013/S

$735.00

* Ex GST. Check with us for the latest pricing

The Lilliput FA1013/S is a 10.1 inch 16:9 LED monitor with 3G-SDI, HDMI, component and composite video. It is designed for pro video customers.

FA1013/S (FA1013-NP/H/Y/S(BlackMagic Compatible)
Manual | Related Products | Specification

Field Monitor with HDMI & 3G-SDI Inputs from LILLIPUT is a desktop field monitor that supports 1920 x 1080p, NTSC, and PAL video signals. It features a native resolution of 1024 x 600 and scales your video signal to display on its screen. The monitor supports Full HD video at 60p, and will also display footage shot at 23.98 (23.976) fps, making it suitable for use with any camera that outputs HD video at 23.98 over HDMI or SDI. Featuring an HDMI input and SDI in and out, the monitor can easily fit into most workflows.

The monitor supports a 140° viewing angle left-to-right for good color and contrast reproduction when viewed slightly off-centre. Six front panel buttons provide menu access and navigation. The monitor is powered by 12 VDC via a 4-pin XLR input, which makes it suitable for use in the field, and it is fitted with a desktop stand so you can mount it on a flat surface if you wish. An included remote control allows you to access the monitor's functions and an included shoe mount allows you to mount the monitor on your camera's accessory shoe if you wish.

24 and 23.98 Frame Rate Support

The monitor supports Full HD frame rates up to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates. 23.98 (AKA 23.976) is also supported, which is the video version of 24 fps. This allows you to use this monitor to view footage shot by cameras that record at cinema frame rates.

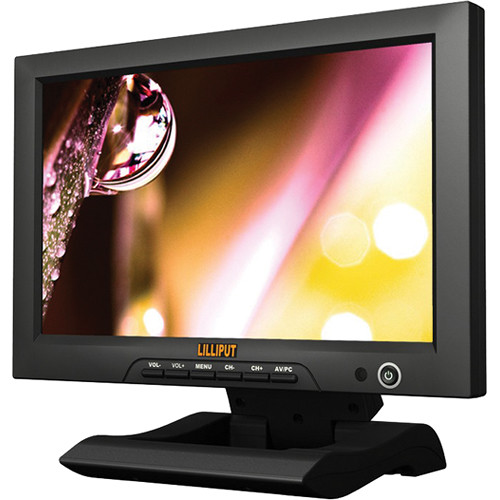

10.1 inch 16:9 LCD

10" monitor with a widescreen aspect ratio

The FA1013's 10.1" LCD panel is ideal for users who need a field monitor that is lightweight and easy to carry around. The widescreen aspect ratio lends itself well to all kinds of professional applications.

Enhanced colour definition

The FA1013 boasts a clear, sharp picture, thanks to a high contrast ratio and LED backlight. The matt display presents accurate colours and leaves no reflection on the screen. What's more, LED technology brings great benefits; low power consumption, instant-on backlight, and consistent brightness over many years of use.

Natively high resolution

Natively 1024×600 pixels, the FA1013 can support video inputs up to 1920×1080 through HDMI. It supports 1080p and 1080i content, making it compatible with most HDMI and HD sources.

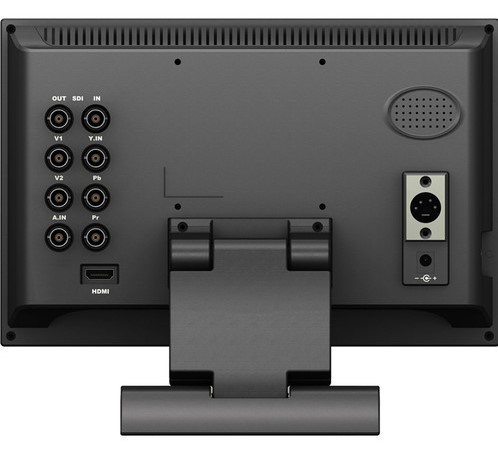

Range of inputs

Due to SDI, HDMI, component and composite video inputs on the FA1013/S, it can be found in all kinds of pro-video applications. You can find the FA1013 in TV broadcast rooms, security monitoring rooms, audiovisual installations, and camera crews.

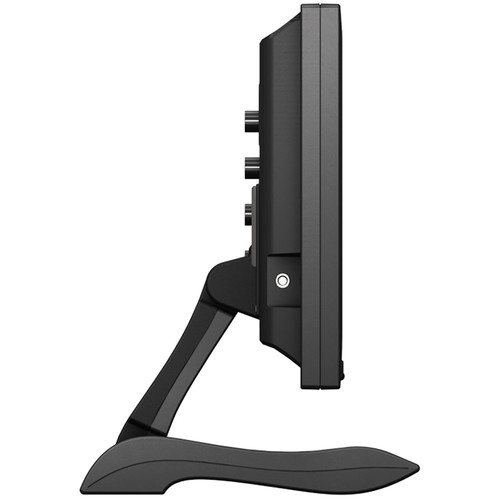

VESA 75 mount

Different mounting options

Like the FA1011, the FA1013 can also feature a desktop stand and VESA 75 mount. However, the FA1013 also has the option of being mounted by ¼ inch BSW thread. This makes the FA1013 perfect for mounting on cameras and tripods. Please ask us about our articulating swing arms compatible with the FA1013.

Lilliput Monitor AVW

 Lilliput Monitor AVW Field Monitor

Lilliput Monitor AVW Field Monitor

Lilliput Monitor AVW Field Monitor

Manual | Related Products | Specification
