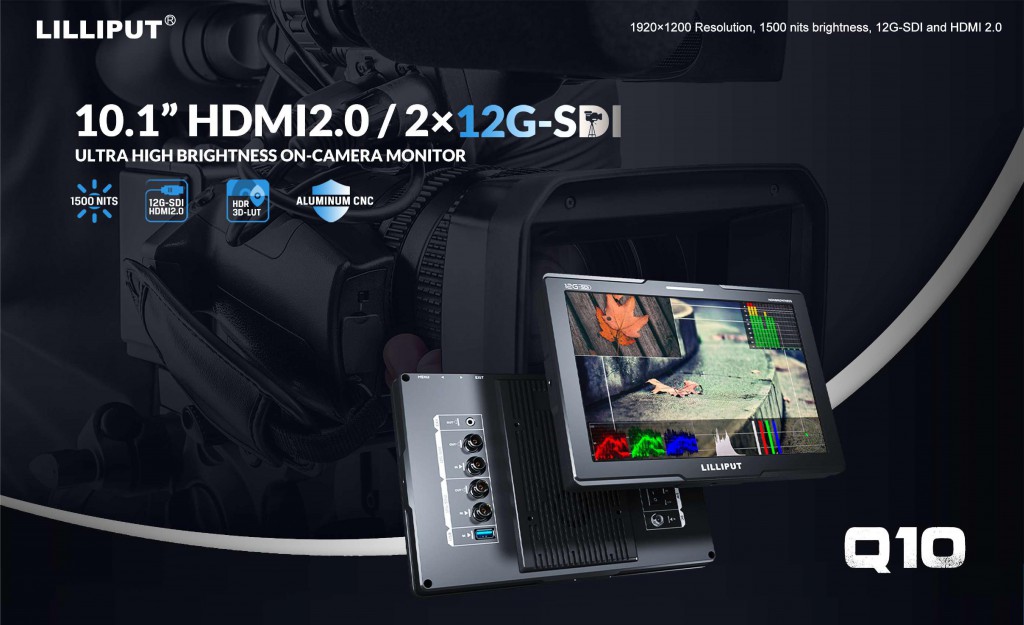

Lilliput 10.1" HDMI 2.0 / 2x 12G-SDI ultra high brightness on-camera monitor

Q10

$1,635.00

* Ex GST. Check with us for Discounts and the latest Trade pricing!

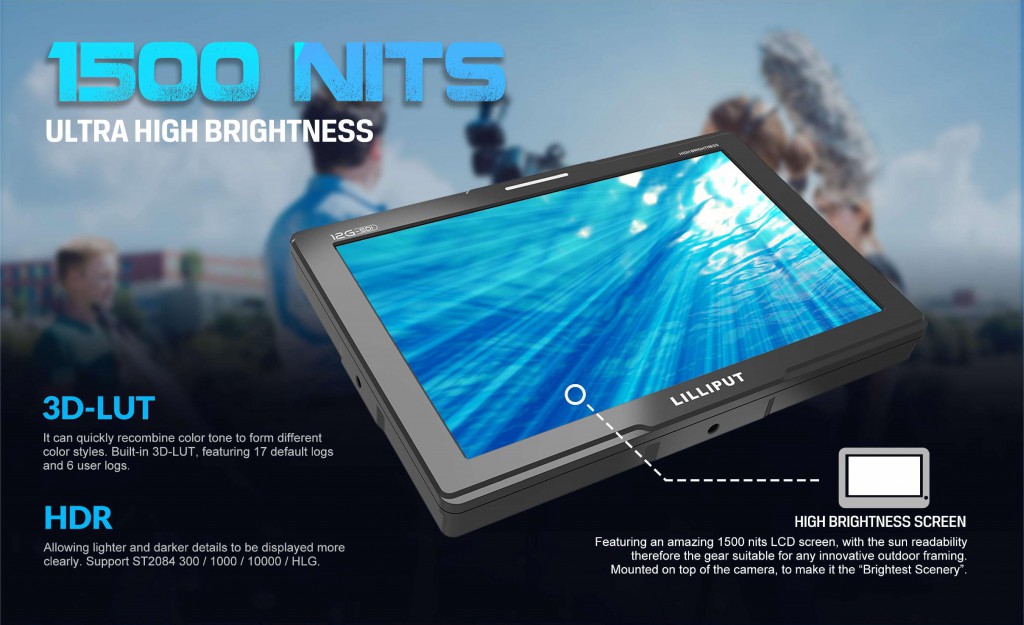

The Lilliput Q10 is a professional camera-top monitor specifically designed for photography and film makers. Fitted with an amazing 1500 nit Ultra Bright LCD screen, it is especially geared for outdoor video and film shooting. The 10.1" LCD panel has 1920×1200 Full HD native resolution and with 200:1 high-contrast it provides crystal-sharp superior picture quality.

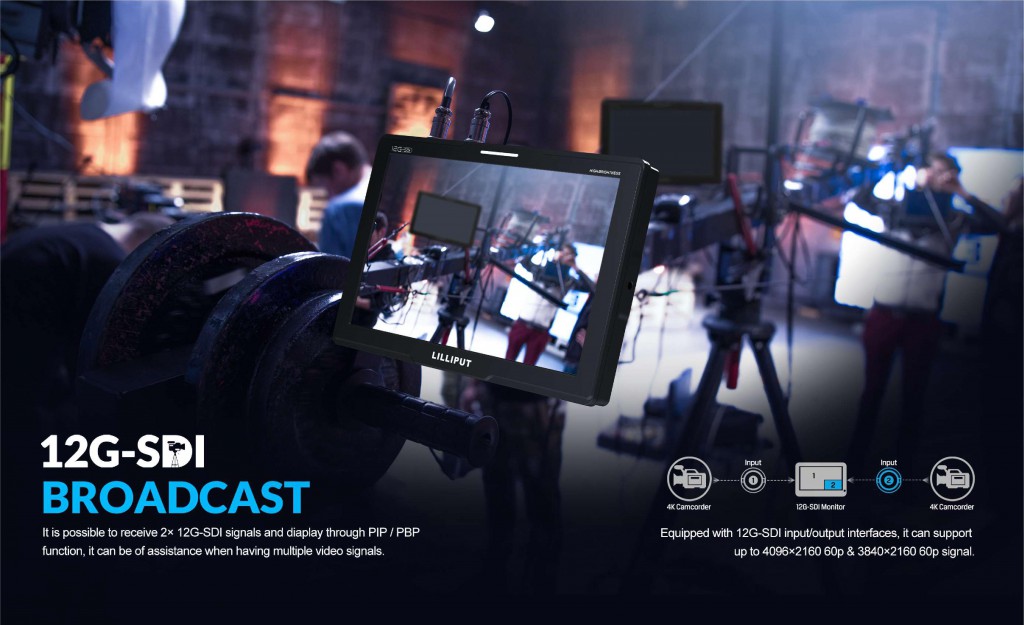

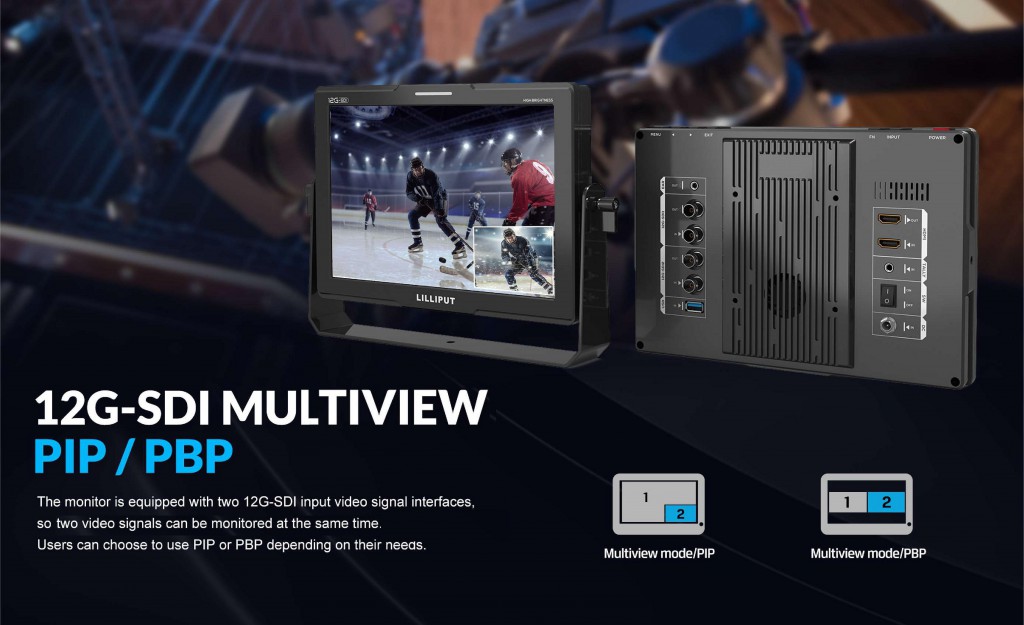

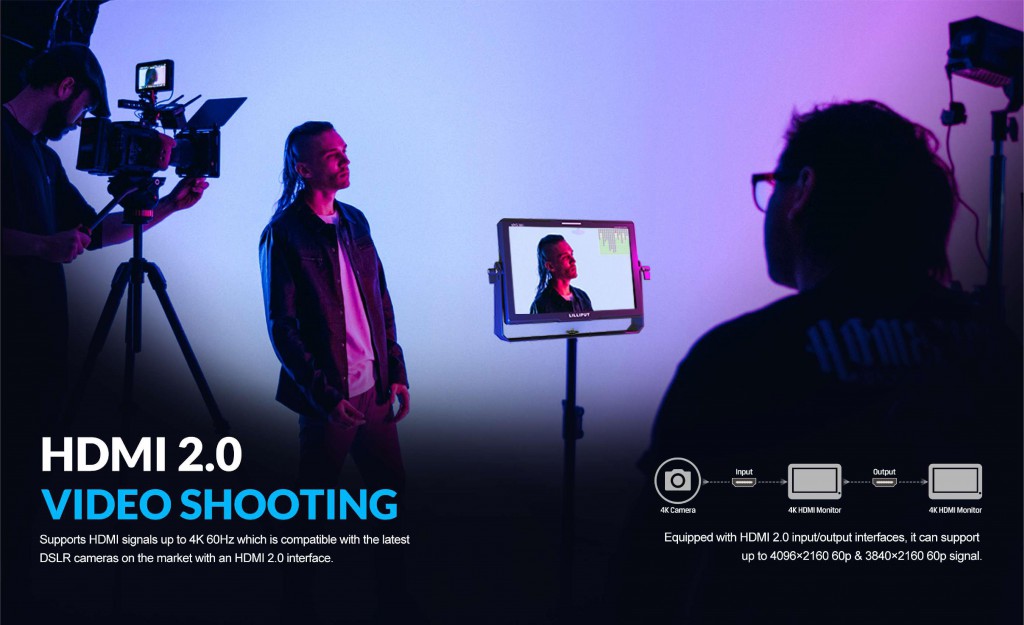

Supporting 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs, it is possible to receive 2× 12G-SDI signals and display both at the same time via the picture-in-picture function, (the size and position of which can be adjusted) and HDMI signals up to 4K 60Hz through an HDMI 2.0 interface - making it compatible with the very latest DSLR cameras on the market.

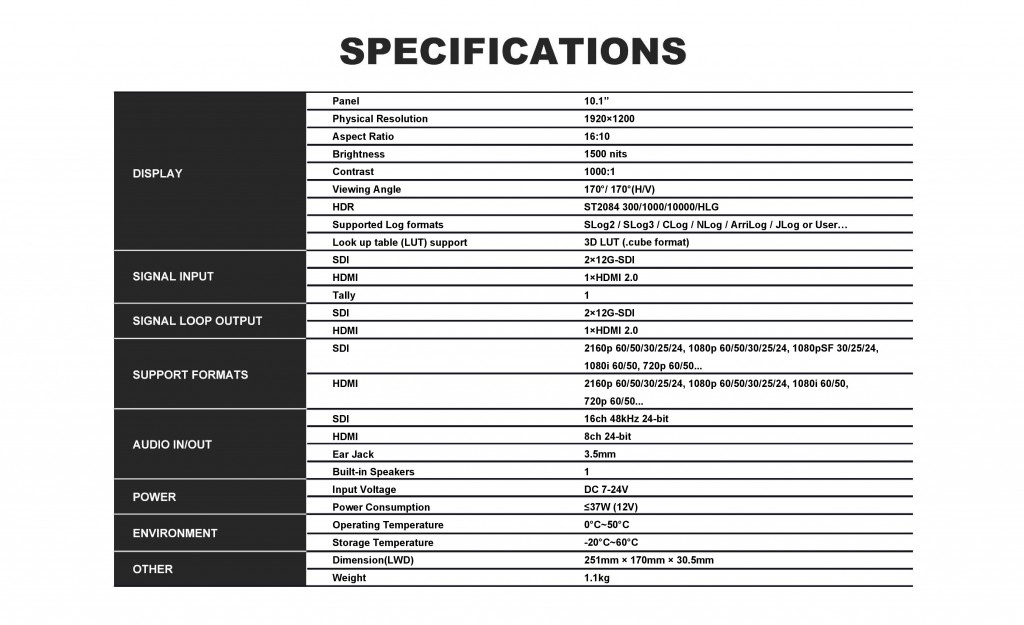

Display
Aspect Ratio16:10
Brightness1500 nits
Contrast Ratio1000:1
Display Screen10.1"
Look Up Table Support3D LUT .cube Format
Resolution1920 x 1200
Viewing Angle170° / 170°
HDRST2084 300 / 1000 / 10000 / HLG
Supported Log FormatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User defined
Connections
AudioSDI - 16CH, 48Khz, 24-bit : HDMI - 8 CH 24 Bit : Ear Jack - 3.5mm : Built in Speaker x1
HDMI Video Input1x HDMI 2.0 - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50...
SDI Video Input2x 12G SDI - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,1080i 60/50, 720p 60/50...
Size
Dimensions251mm × 170mm × 30.5mm
Weight4KG (Shipping Weight)
Power
Input VoltageDC 7-24V
Power Consumption<=37W (12V)
Environment
Operating Temperature0°c to 50°c
Storage Temperature-20°c to 60°c

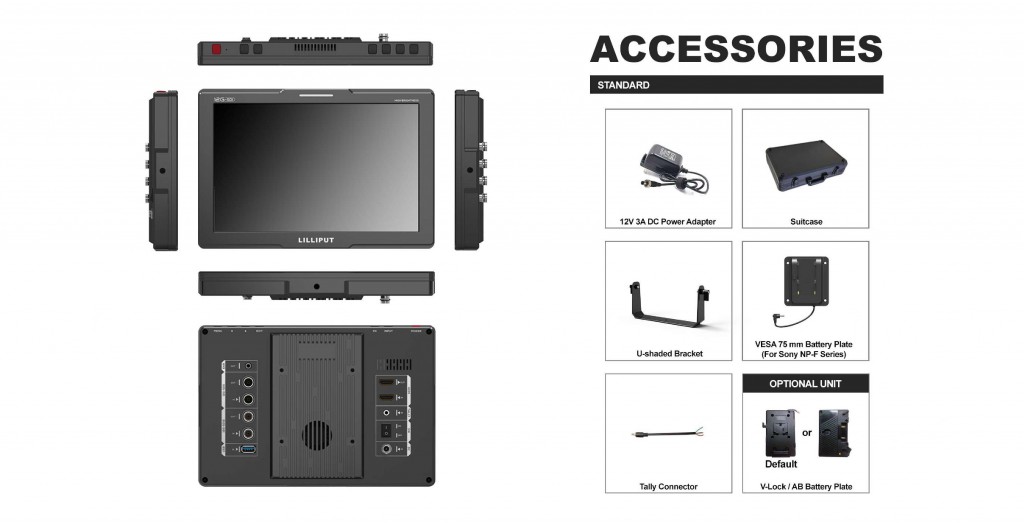

Lilliput Q10
Lilliput Q10
Liliiput Q10
Lilliput Q10
Lilliput Q10
Lilliput Q10
Lilliput Q10


Lilliput Q10
