Mustang Pro Video wall mount with push in, pop out



* Ex GST. Check with us for Discounts and the latest Trade pricing!

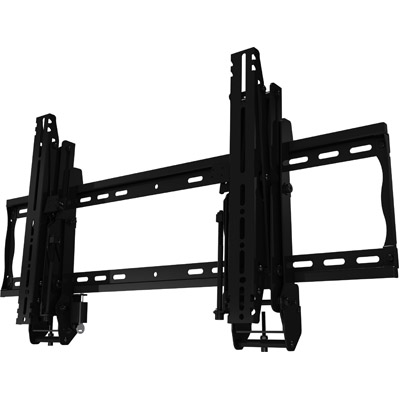

The Mustang Pro MPVW-X64U-PPV2 for Video Wall Displays up to 600 x 400 VESA. The third generation of our best-in-class video wall mount system builds on the proven success of our previous models to deliver not only more points of adjustment but also an increased adjustment range. In addition to vertical, horizontal, and plumb adjustments, the MPVW-X64U-PPV2 allows for nearly 3” of depth micro-adjustment for ultimate ease in video wall alignment especially in instances where walls are uneven.

Display Sizes:37″ – 75″ TVs
Load Rating:200 lbs
Max VESA Pattern:600x400mm
Post-Installation Leveling:+- 0.5″ (1″ Total)
Plumb Micro-Adjustment:+- 0.5″ (1″ Total)
Depth Micro-Adjustment:2.95″
Depth From Wall:3.85″ – 6.8″
Extension:11″ extension from wall during service
Security:Proprietary keyed alike lock and key system
Construction:High-grade cold rolled steel
Finish:Scratch-resistant epoxy powder coat

Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.
