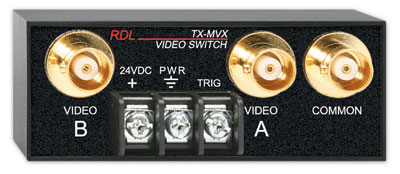

RDL, 2x1 Remote Controlled Video Switch

TX-MVX

$253.09

* Ex GST. Check with us for the latest pricing

  • Manual Switching of Video
  • Open-Collector Switching of Video
  • 2 x 1 Video Selection
  • 1 x 2 Video Routing
  • Operation with NTSC or PAL
  • Remote Controlled Video Switching

The TX-MVX is the ideal choice in installations where either a manual switch or an open-collector must switch video signals. VIDEO A is normally connected to COMMON. When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected. The TX-MVX utilizes a high-quality RF relay allowing the module to either route a single video source to one of two destinations, or switch two video sources to a single video destination. The actual switch (or other module actuating the switch action) may be located remotely from the TX-MVX.

Many RDL modules feature an open-collector SLAVE control terminal. These terminals may be used to control the TX-MVX. Alternatively, relay contacts on other equipment may also be used to control the TX-MVX. For example when used with other RDL modules, the TX-MVX could switch video:
  • using audio detection (ST-ACR) from an external audio source
  • using video detection (TX-VCR) from another video source
  • at a prescribed time during a power-up sequence (with the RU-SQ6A sequencing controller)
  • from logic signals (ST-LCR)
  • using wall mounted remote controls (RT2, RC2-ST or RUC-4)

Use the TX-MVX individually in NTSC or PAL systems, or combine it with other RDL products and various mounting accessories as part of a complete audio/video system.
