Lumantek ez-MD+ SDI/HDMI Cross Converter

Posted on 30 May 2022

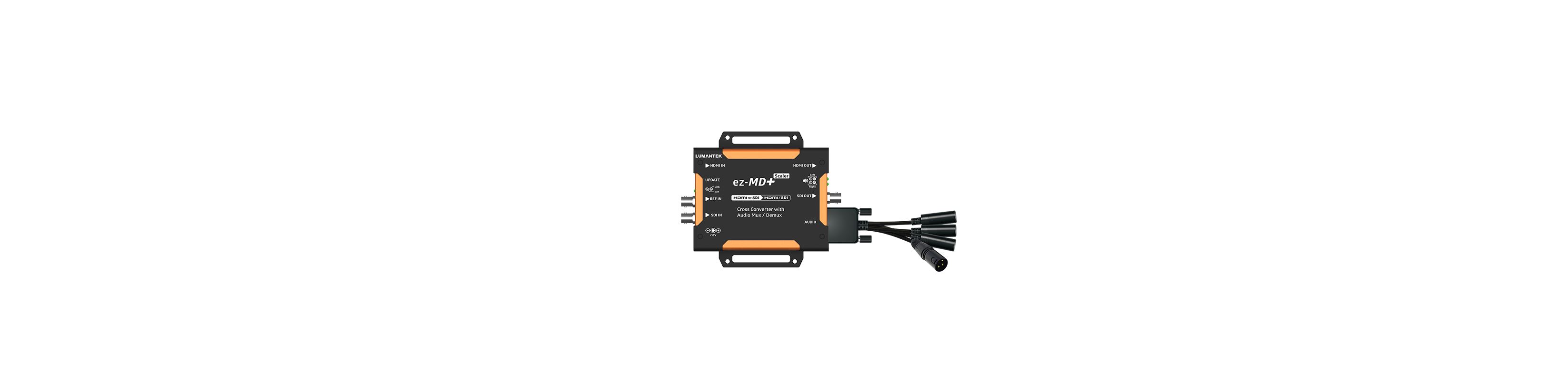

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with an audio delay controller. ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. More info




LMTK-LUM-EZ-MD-P 2




The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps.




Lumantek EZ-MD+ Specifications:

SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Input: SD/HD/3G (HDMI Type A) x1
Reference Input: B.B , TRI (BNC 75Ω) x1
Audio Input: D-SUB 9PIN (Female) x1
Video Formats

720x480i@59.94/60
720x576i@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
1920x1080p@23.98/24/25/29.97/30
1920x1080p@50/59.94/60

SDI VIdeo Output: SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Output: SD/HD/3G (HDMI Type A) x1
Audio Output: D-SUB 9PIN (Female) x1
Video Formats

720x480i@59.94 (DIP SW : 1111)
720x576i@50 (DIP SW : 0111)
1280x720p@50 (DIP SW : 1011)
1280x720p@59.94 (DIP SW : 0011)
1280x720p@60 (DIP SW : 1101)
1920x1080i@50 (DIP SW : 0101)
1920x1080i@59.94 (DIP SW : 1001)
1920x1080i@60 (DIP SW : 0001)
1920x1080p@23.98 (DIP SW : 1110)
1920x1080p@24 (DIP SW : 0110)
1920x1080p@25 (DIP SW : 1010)
1920x1080p@29.97 (DIP SW : 0010)
1920x1080p@30 (DIP SW : 1100)
1920x1080p@50 (DIP SW : 0100)
1920x1080p@59.94 (DIP SW : 1000)
1920x1080p@60 (DIP SW : 0000)

Power: DC Power Input (DC Jack) x1
Update: Debus (Micro-USB) x 1
DIP Switch: (10 Pole) x 1
Video Output Resolution, Video Output Ratio, Video Input(SDI or HDMI),Audio(INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain(0 or -10dB)
Rotary Switch: (10 step) x 1
Audio Delay Control: (50ms Step)
Display: Link (Green x 1)
HDMI or SDI Input video Detect
Ref (Green x 1)
REF Input Signal Detect
Left (Green x 1, Red x 1)
Input Audio Level Meter (Left)
Right (Green x 1, RED x 1)
Input Audio Level Meter (Right)
Power Input: DC +11V to +13V
Power consumption: 8W(max.)
Operation Temperature: 0~45℃
Dimension: 130×100.4×26.9 (include connector)
Weight: 0.4kg (Typ.)


HDMI/SDI Cross-Converter
