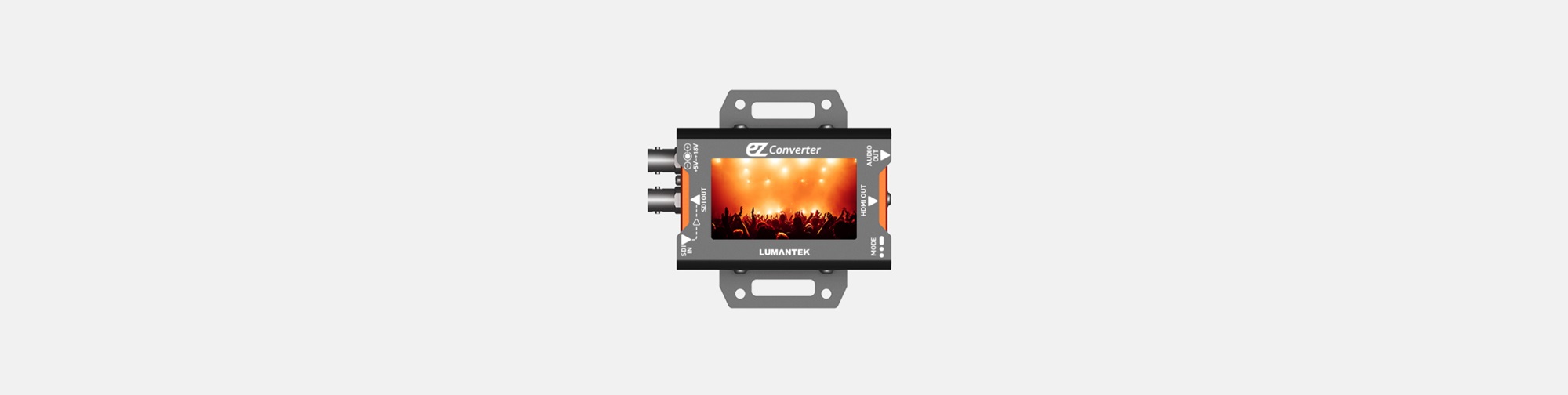

Lumantek SDI to HDMI Converter with 2.7Inch Monitoring Display
Posted on 10 October 2018
SDI to HDMI Converter with Display
You can easy to monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK’s ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the ‘dip switch’, you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.
Scalable Resolution / Screen Ratio Control
ez-SHV+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by ‘dip switch’.
Low Power Consumption / Wall mountable
The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity. ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.
Detect Cable Length Automatically
ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as ‘SHORT’, ‘MEDIUM’ and ‘LONG’.
The EZ-SHV+ will be available November 2018.
