New DTP3 Wallplate Receiver Ships Today - Perfect for Discreet Setups

Posted on 30 October 2025

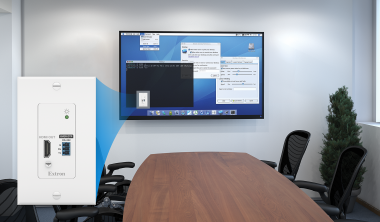

We are now shipping the DTP3 R 201 D. This single-gang decorator-style receiver works with Extron DTP3-enabled products to extend HDMI and bidirectional RS-232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. The DTP3 R 201 D supports video resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The one-gang form factor provides maximum space efficiency in wall mount, floor box, and furniture mount applications. The wall-mountable design and remote power capability of the DTP3 R 201 D provide the convenience of placing output connections precisely where they are needed.

Key Features:

• Receives HDMI plus control up to 330′ (100 m) over a shielded CAT 6A cable
• Supports computer and video resolutions up to 4K/60, including 5K
• Supports ultra-wide aspect ratios, including 21:9 and 5K
• HDCP 2.3 compliant
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC
• Remote power capability with DTP3 products
• Mounts in an included one-gang decorator-style wallplate

Watch the Product Introduction Video

Learn More

The DTP3 R 201 D is Now Shipping.
