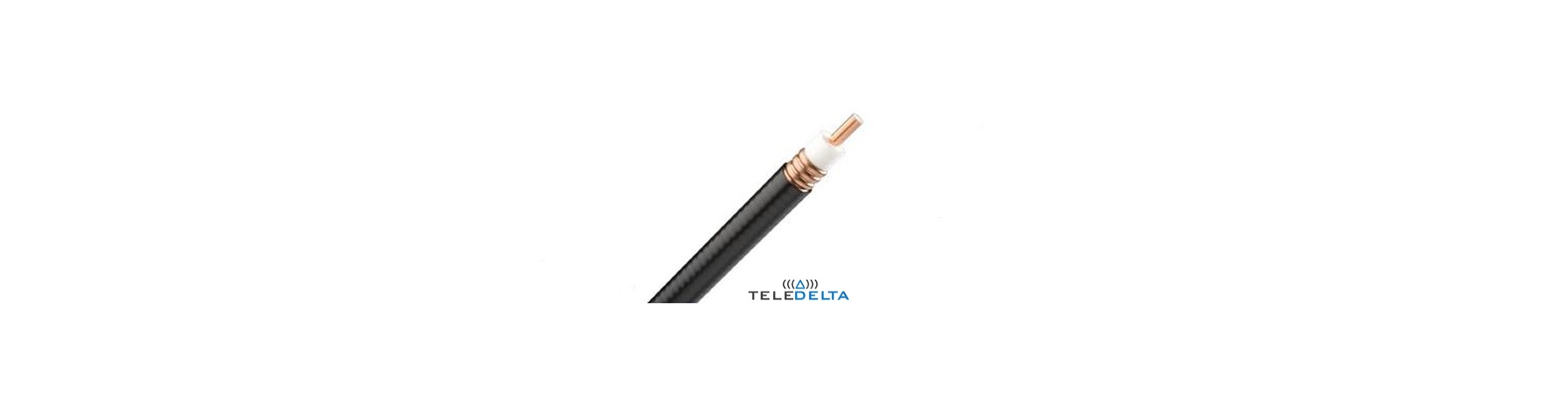

TeleDelta 1/2 Inch 50 Ohm Leaky Feeder / Radiating Cable

VHF – 50~2700Mhz range – suitable for Underground, Tunnels, Mining, In-building and Mobile Communications applications.

Mechanical Specifications:

• Environment: Underground and Above Ground Applications
• Temperature Range: -25 ~ +72 °C
• Conductor (Inner): 4.80mm +/- 0.2mm Diameter
• Conductor Material: Copper Coated Aluminium
• Conductor Insulation: 12.0mm +/- 0.5mm
• Insulation Material: PE – Physically foamed
• Conductor (Outer): 13.90mm +/0 0.5mm
• Conductor Material: Corrugated copper tube with radiating slots
• Jacket: 16.00mm +/- 0.4mm
• Jacket Material: Low Smoke Halogen Free Sheath – Colour: Black (Standard),
• Optional: Blue and Yellow
• Cable Weight: 0.19 kg /M
• Single / Continuous Bend Radius: 50mm / 345mm
• Min Recommended Bend Radius: 130.00mm
• Number Bends Typical: 40
• Recommended Hanger Spacing: 1.0m

Technical Datasheet can be found here:
