Inovonics Second Generation DAB/DAB + Monitor Receiver

661.00

P.O.A

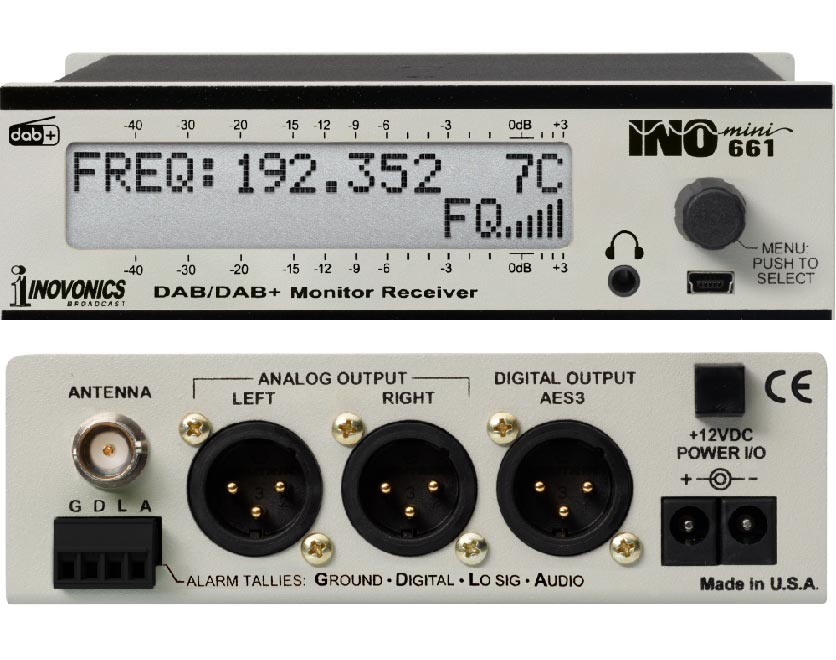

INOmini DAB/DAB+ Monitor/Receiver


The INOmini 661 is Inovonics’ second-generation, small form-factor off-air monitoring receiver for EBU-specified DAB and DAB+ digital radio broadcasts.

The 661 provides high-quality confidence monitoring and delivers a dual audio feed with independently-adjustable analog and AES digital audio outputs.

Important text metadata that accompanies the broadcast can be read in multiple menu levels on the front-panel display. The large, easy to- read LCD screen also shows pertinent signal quality metrics and audio levels.

Front-panel and remote alarms indicate transmission problems, and the compact size of the INOmini 661 allows the mounting of three units in a 1U rack space.

Features

  • The INOmini 661 is a sensitive, DSP-based (SDR) receiver for EBU Band III DAB and DAB+ digital radio broadcasts.
  • The easy front-panel setup uses jog-wheel menu navigation.
  • A large LCD display shows essential signal parameters, demodulated audio levels, alarm conditions and program-related metadata. Critical system menus are hidden.
  • Balanced analog and AES-digital program line outputs are available simultaneously; levels are independently adjustable.
  • Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate DAB Loss, Low Signal and Audio Loss.
  • All receiver setup parameters are held in non-volatile memory.
  • When issued, free firmware updates are easily installed in the field.

Specifications

Tuning Range
DAB Band III, Mode 1 (174.928MHz – 239.200MHz); all EBUsanctioned frequency allocations (Blocks 5-12, A-D) plus Block 13 A-F

Antenna Input
75-ohm (BNC)

Sensitivity
10dBμV for error-free reception

Audio Codecs
MPEG-1, Audio Layer 2 (MP2); HE-AAC (AAC+)

Audio Response
±0.25dB, 20Hz – 20kHz

Signal Parameters Displayed
FQ (FIC Quality), RF (RSSI), SNR, CNR

Metadata Displayed
Ensemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date

Program Audio Outputs
  • Balanced Analog (XLR) Left and Right outputs are adjustable from –15dBu to +15dBu in 0.2dB steps.
  • AES Digital (XLR) output at 44.1kHz is adjustable from –30dBFS to 0dBFS in 0.2dB steps.
  • Headphone Jack (3.5mm TRS) has an adjustable listening level.

Check for the product brochure
INOmini 661 DAB+ Monitor Manual
