RDL Mic and Stereo Line Audio Mixer - 4X1

EZ-MX4MLX

$536.73

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-MX4ML

Mic and Stereo Line Audio Mixer – 4X1

Four Input Mixer, Two Mic and Two Line Inputs
Two Balanced Microphone Inputs on XLR
One Unbalanced Line Input on RCA Jacks
One Line Input on MINI or RCA Jacks
Unbalanced Output on RCA Jacks
Microphone Inputs Provide Phantom Voltage
Dual-LED VU Meter for Each Channel
Optimized for Dynamic or Condenser Mics
Headroom Accomodates High Input Levels
Mic Headroom Increases at Lower Gain Settings
Gold Plated RCA Input and Output Jacks

Description

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.

Specifications

Mic inputs (2): 1.2 kΩ balanced on XLR jack, mic-level, -11 dBu max.
Line inputs (3): > 10 kΩ, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
Level controls (4): Off to 50 dB gain (mic), Off to 12 dB gain (line)
Output: -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
Frequency Response: 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01 dB, line input)
THD+N: < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
Crosstalk: < -72 dB (1 kHz)
CMRR: > -55 dB (20 to 20 kHz, mic input)
Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Phantom: 24 V (IEC 61938: 2013)
Noise: < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
24 Vdc power supply current: 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
Case dimensions: 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size: 1/3 rack width
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.615 lbs.
Shipping Weight: 1.015 lbs.
Package Dimensions: 9.5 x 7 x 2.25 in.

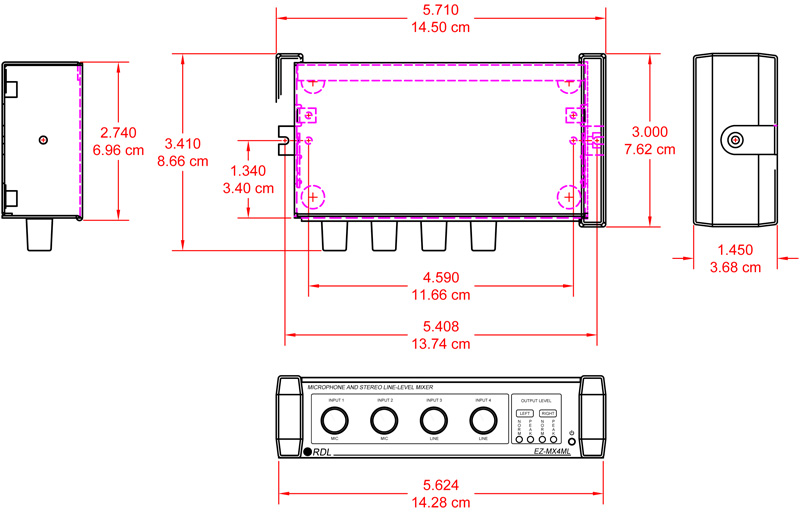

Dimensions

Download

EZ-MX4ML Data Sheet PDF Download
