RDL 20 Watt Stereo Audio Mixer Amplifier with EQ

EZ-MXA20X

$669.27

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-MXA20

20 W Stereo Audio Mixer-Amplifier with EQ – 8 Ω, with Power Supply

Audio Amplifier with Mic and Line Input Mixer
10 Watts RMS Per Channel into 8 Ω
8 Watts RMS Per Channel into 4 Ω
Switch-Selectable Load Impedance on Rear Panel
Balanced Microphone Input on XLR
Unbalanced Line Inputs on RCA Jacks
Switch-Selectable Phantom on Mic Input
Bass and Treble Tone Control Equalization
Integral Overload Limiter with LED Indicator
Limiter Controls Overloads from Clipping
Limiter Produces Output Level Comparable to Higher Power Amp

Description

The EZ-MXA20 is a stereo mixer amplifier with one mic input and two line inputs. Bass and treble tone controls are included. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-MXA20 is used in houses of worship, restaurants, clubs, meeting rooms and commercial sound systems.

Specifications

Inputs (3): 1.2 kΩ balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max.(1) > 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. (2)
Gain: Off to 74 dB (mic), Off to 32 dB (line)
Outputs (2): Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switch-selectable output impedance
Equalization: ±10 dB @ 10 kHz, ±9 dB @ 80 Hz
Frequency Response: 50 Hz to 20 kHz (±1.5 dB, mic input, 10 Watts), 35 Hz to 20 kHz (±1.5 dB, line input, 10 Watts)
THD+N: < 0.25%
CMRR: > -55 dB (mic)
Crosstalk: < -68 dB (1 kHz, line input)
Phantom: Switch-selectable 24 V (IEC 61938: 2013)
Noise: < -70 dB (below 10 Watts, -10 dBV line input), < -65 dB (below 10 Watts, -50 dBu mic input)
24 Vdc power supply current: 170 mA (idle), 1000 mA (max.)
Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size: 1/3 rack width
Package Type: Cardboard Box
Tariff code: 8518.50.0000
WEEE weight: 1.015 lbs.
Shipping Weight: 1.435 lbs.
Package Dimensions: 9.5 x 7 x 2.25 in.

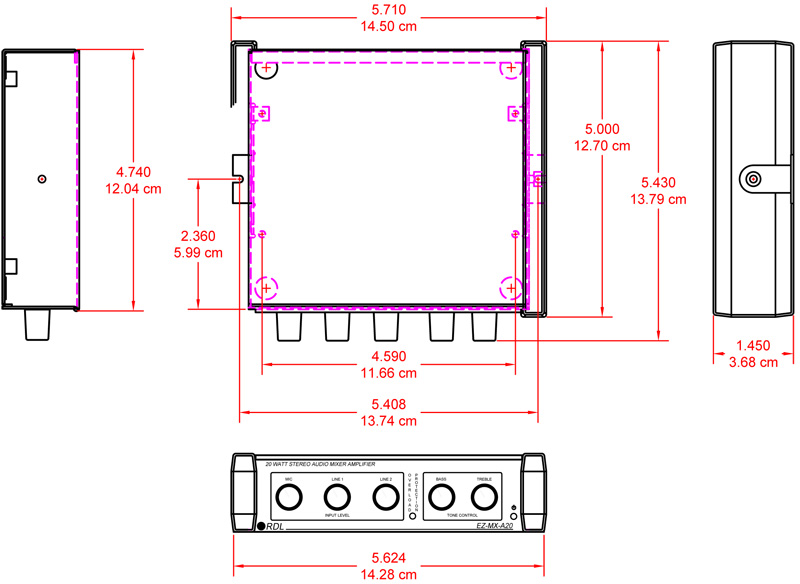

Dimensions

Download

EZ-MXA20 Data Sheet PDF Download
